Optical Non Contact Measurement

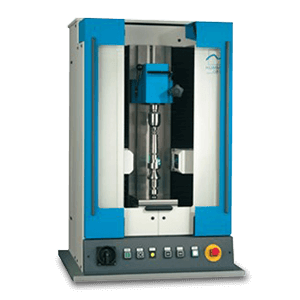

The Hommel Opticline range of measuring systems is designed to provide high speed, high accuracy measurement of cylindrical components on the shop floor. The range is capable of measuring items with a length of up to 1000mm, a diameter of 230mm and a weight of 40kg. The Opticline series is a flexible solution ideally suited to cope with an increasing variety of shop floor applications.
Contour 514 – Measuring Capacities
- Diametres up to 140mm
- Lengths up to 550mm
- Part Weights up to 15kg
Accuracy /MPE
- Diameters: (2 + D[mm]/100) µm
- Lengths: (5 + L[mm]/100) µm
Contour 410 – Measuring Capacities
- Diametres up to 50mm
- Lengths up to 400mm
- Part Weights up to 10kg
Accuracy /MPE
- Diameters: (2 + D[mm]/100) µm
- Lengths: (5 + L[mm]/100) µm
Evaluation Characteristics
Diametres, Lengths, Radii, Angles, Roundness, Runout and Gauge, Referance Points / Intersections
